Drip Catcher White

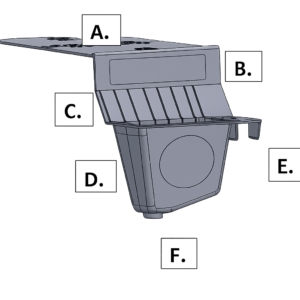

Description

A. Pad

B. Ledge

C. Splash Guard

D. Reservoir

E. Drain Cap Ledge and Hose Clamp

F. Threaded Drain



Placement of the CnS:

Step 1: Position the CnS Pad

Place the CnS Pad on a table or counter with the ledge snug against the edge of the surface. Soft anti-skid cushions attached to the underside of the CnS Pad help protect table and counter surfaces while keeping the unit stable.

Step 2: Align the Beverage Container

Use the circles and arrow markings to properly position the beverage container on the pad. Place the dispenser so that the spout opening is directly above the Splash Guard.

When aligned correctly, any drips from the spout will fall onto the Splash Guard before flowing down the front and into the Reservoir.

Step 3: Secure the Drain Cap

Ensure that the drain cap is securely tightened onto the threaded drain spout. Once secured, the unit is ready for serving.

Optional Attachments / Features of the Catch-n-Store

Note:  The Reservoir has a capacity of 3 cups liquid by itself.  Attach the Optional Accessories and you can capture and store the full capacity of the beverage container that is resting on the Pad.

Quick Swap Packets are non-woven absorbent (tea bag like) packets 3” long and 2.5” wide and approximately ¼” thick when dry with a 6 inch extraction string and ¼ teaspoon of Super Absorbent Powder inside. That are placed on the bottom of the reservoir prior to using the Catch-n-Store drip catcher. When the Quick Swap Packet comes in contact with water it swells and can absorb as much as 3 oz. of liquid. The string allows the user to quickly and discreetly replace the QSP removing the liquid from the reservoir when either the evacuation tube or hose is not being used.

Polyacrylic acid – A Eco-Friendly, super absorbent polymer similar to that found in disposable baby diapers.

Short Evacuation Tube with a ¾” Standard US garden hose fitting to facilitate emptying the Reservoir without moving the beverage dispenser.

Long Evacuation Hose with a ¾” Standard US garden hose fitting to be connected to the Reservoir’s drain fitting which allows the reservoir to continuously drain into a plastic refuse bag or container located discretely under the table or behind the counter.
